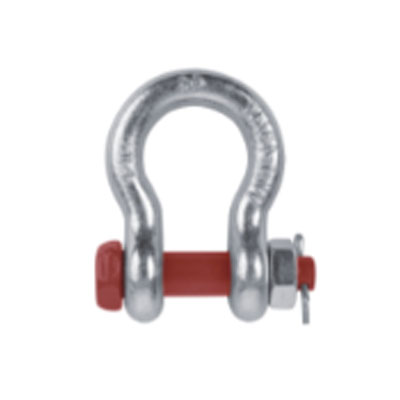

ʻO US TYPE High Tensile Forged Shackle G2130

Ka makamake nui o ka US TYPE High Tensile Forged Shackle G2130US ʻano
Materialï¼š40cr
Pila kila
Loiloi hope loa¼¼WW.L.L * 4
ʻO ka ʻilikai ponoʻīšš ʻO ke kala ponoʻī, Zinc pleated, Hot dip dalvanized,
Trivalent chromium plating zinc, he lepo lā ka pena ʻana

E hoʻouna i ka nīnau

Hōʻike huahana

US TYPE High Tensile Forged Shackle G2130 Hiʻona

ʻAno US
Materialï¼š40cr
Pila kila
Loiloi nui loaï¼šW.L.L * 4
ʻO ka ʻilikai ponoʻīšš ʻO ke kala ponoʻī, Zinc pleated, Hot dip dalvanized,
Trivalent chromium plating zinc, he lepo lā ka pena ʻana

ʻO US TYPE High Tensile Forged Shackle G2130Hoakaka

Nui Helu	Hana ukana palena (tone)	Nā Dimensinons (mm)									Kaupaona kēlā me kēia
Nui Helu	Hana ukana palena (tone)	A	B	C	D	E	F	G	H	I	Kaupaona kēlā me kēia
3/16	1/3	9.65	6.35	22.4	4.85	15.2	14.2	37.2	24.9	4.85	0.03
1/4	1/2	11.9	7.85	28.7	6.35	19.8	15.5	46.7	32.5	6.35	0.05
5/16	3/4	13.5	9.65	31	7.85	21.3	19.1	53	37.3	7.85	0.1
3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	63	45.2	9.65	0.15
7/16	1-1 / 2	19.1	12.7	42.9	11.2	29.5	26.9	74	51.5	11.2	0.22
1/2	2	20.6	16	47.8	12.7	33.3	30.2	83.5	58.5	12.7	0.36
5/8	3-1 / 4	26.9	19.1	60.5	16	42.9	38.1	106	74.5	17.5	0.76
3/4	4-3 / 4	31.8	22.4	71.5	19.1	51	46	126	89	20.6	1.23
7/8	6-1 / 2	36.6	25.4	84	22.4	58	53	148	102	24.6	1.79
1	8-1 / 2	42.9	28.7	95.5	25.4	68.5	60.5	167	119	26.9	2.57
1-1 / 8	9-1 / 2	46	31.8	108	28.7	74	68.5	190	131	31.8	3.75
1-1 / 4	12	51.5	35.1	119	31.8	82.5	76	210	146	35.1	5.31
1-3 / 8	13-1 / 2	57	38.1	133	35.1	92	84	233	162	38.1	7.18
1-1 / 2	17	60.5	41.4	146	38.1	98.5	92	254	175	41.1	9.43
1-3 / 4	25	73	51	178	44.5	127	106	313	225	57	15.4
2	35	82.5	57	197	51	146	122	348	253	61	23.7
2-1 / 2	55	44.6	105	70	267	66.5	184	145	453	327	44.61
3	85	127	82.5	330	76	200	165	546	365	92	70
3-1 / 2	120	133	95.5	372	92	229	203	626	419	105	120
4	150	140	108	368	104	254	229	653	468	116	153
