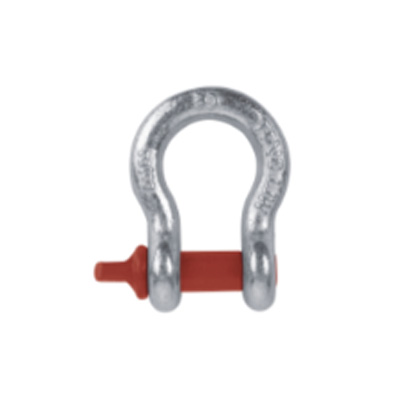

ʻO US TYPE High Tensile Forged Shackle G209

Ka makamake nui o ka US TYPE High Tensile Forged Shackle G209US ʻano
Materialï¼š45 #
Pila kila
Loiloi nui loaï¼šW.L.L * 4
ʻO ka ʻilikai ponoʻīšš ʻO ke kala ponoʻī, Zinc pleated, Hot dip dalvanized,
Trivalent chromium plating zinc, he lepo lā ka pena ʻana

E hoʻouna i ka nīnau

Hōʻike huahana

ʻO ʻO US TYPE High Tensile Forged Shackle G209Hiʻona

ʻAno US
Materialï¼š45 #
Pila kila
Loiloi nui loaï¼šW.L.L * 4
ʻO ka ʻilikai ponoʻīšš ʻO ke kala ponoʻī, Zinc pleated, Hot dip dalvanized,
Trivalent chromium plating zinc, he lepo lā ka pena ʻana

ʻO US TYPE High Tensile Forged Shackle G209 Hoakaka

Nui Helu	Ka palena hana hana (tone)	Nā Dimensinons (mm)											Kaupaona kēlā me kēia
Nui Helu	Ka palena hana hana (tone)	A	B	C	D	E	F	G	H	I	M	N	Kaupaona kēlā me kēia
3/16	1/3	9.65	6.35	22.4	4.85	15.2	14.2	24.9	37.3	4.06	28.4	4.85	0.03
1/4	1/2	11.9	7.85	28.7	6.35	19.8	15.5	32.5	46.7	4.85	35.1	6.35	0.05
5/16	3/4	135	9.65	31	7.85	21.3	19.1	37.3	53	5.6	42.2	7.85	0.09
3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	45.2	63	6.35	51.5	9.65	0.14
7/16	1-1 / 2	19.1	12.7	42.9	11.2	29.5	26.9	51.5	74	7.85	60.5	11.2	0.17
1/2	2	20.6	16	47.8	12.7	33.3	30.2	58.5	83.5	9.65	68.5	12.7	0.33
5/8	3-1 / 4	26.9	19.1	60.5	16	42.9	38.1	74.5	106	11.2	85	17.5	0.62
3/4	4-3 / 4	31.8	22.4	71.5	19.1	51	46	89	126	12.7	101	20.6	1.07
7/8	6-1 / 2	36.6	25.4	84	22.4	58	53	102	148	12.7	114	24.6	1.64
1	8-1 / 2	42.9	28.7	95.5	25.4	68.5	60.5	119	167	14.2	129	26.9	2.28
1-1 / 8	9-1 / 2	46	31.8	108	29.5	74	68.5	131	190	16	142	31.8	3.36
1-1 / 4	12	51.5	35.1	119	32.8	92.5	76	146	210	17.5	156	35.1	4.31
1-3 / 8	13-1 / 2	57	38.1	133	36.1	92	84	162	233	19.1	174	38.1	6.14
1-1 / 2	17	60.5	41.4	146	39.1	98.5	92	175	254	20.6	187	41.1	7.8
1-3 / 4	25	73	51	178	46.7	127	106	225	313	25.4	231	57	12.6
2	35	82.5	57	197	53	146	122	253	348	31	263	61	20.4
2-1 / 2	55	105	70	267	69	184	145	327	453	35.1	330	79.5	98.9
