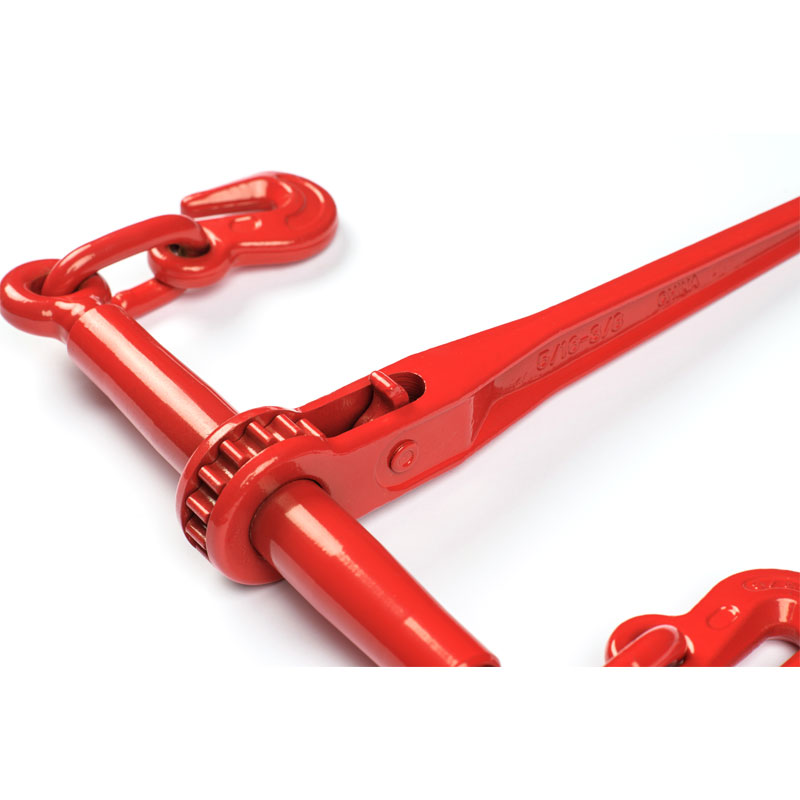

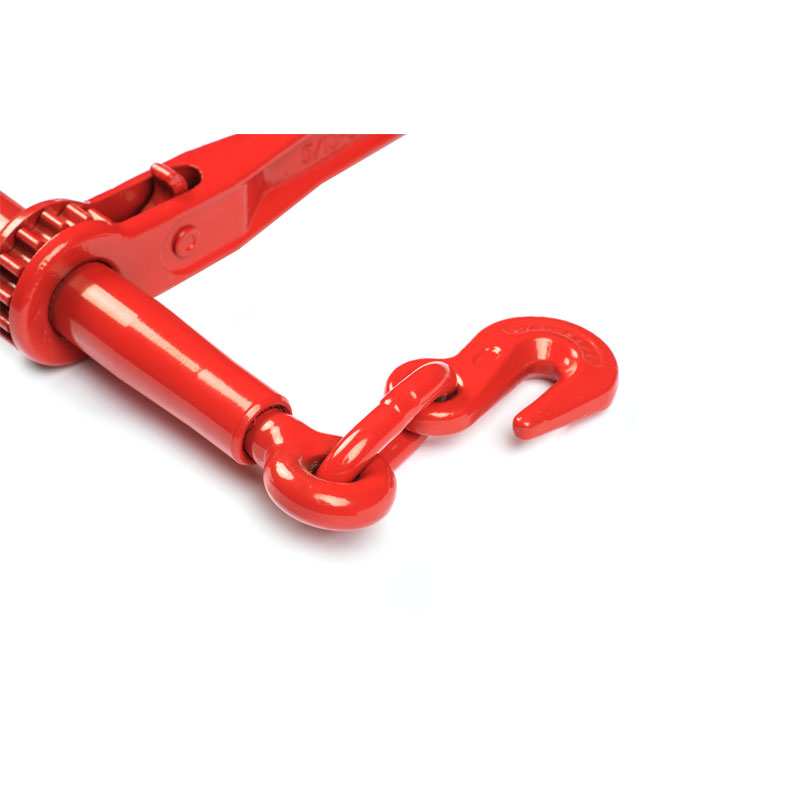

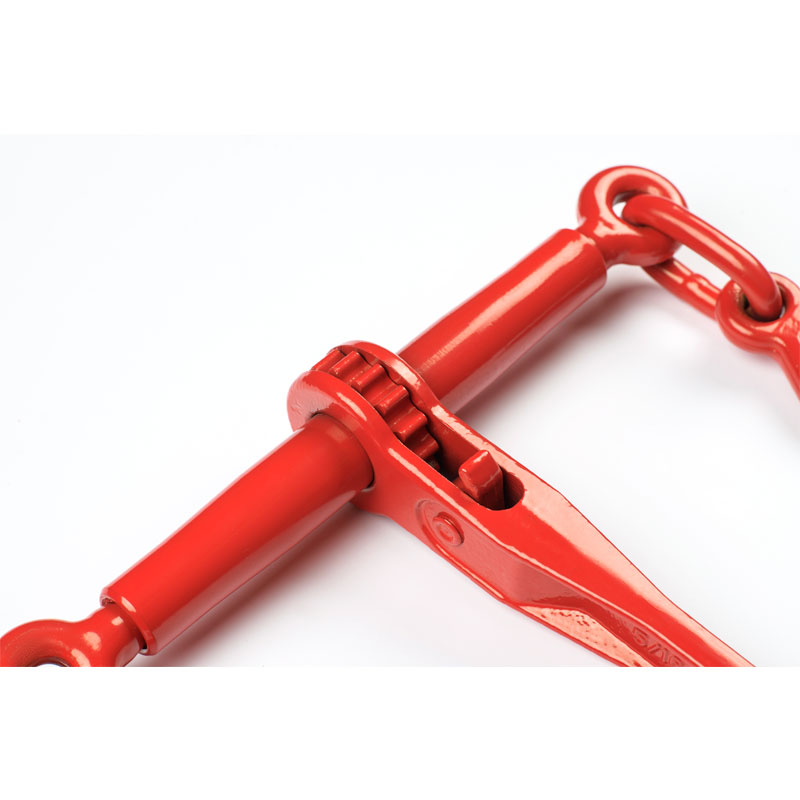

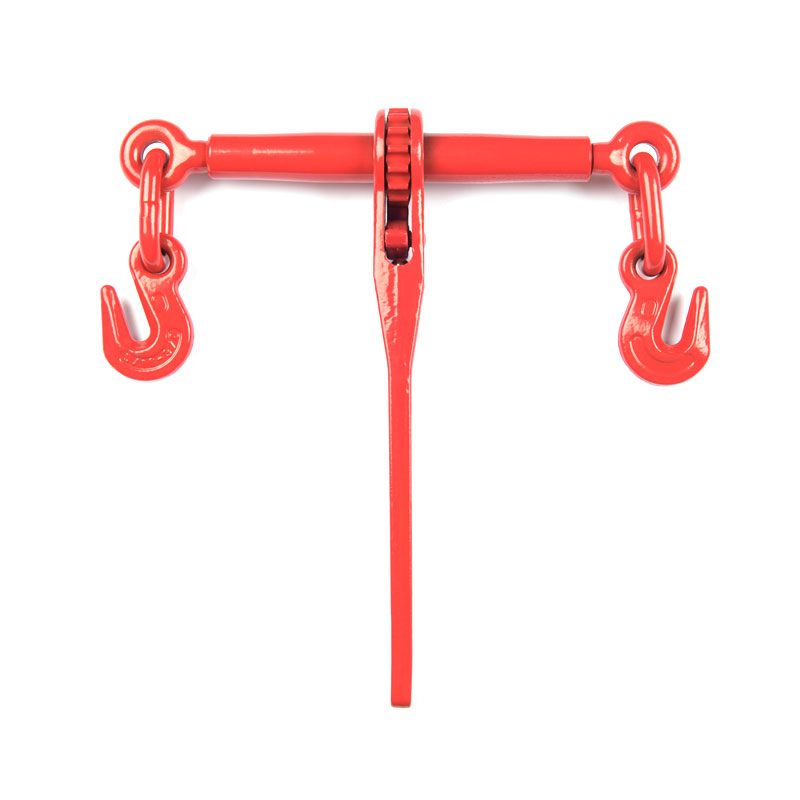

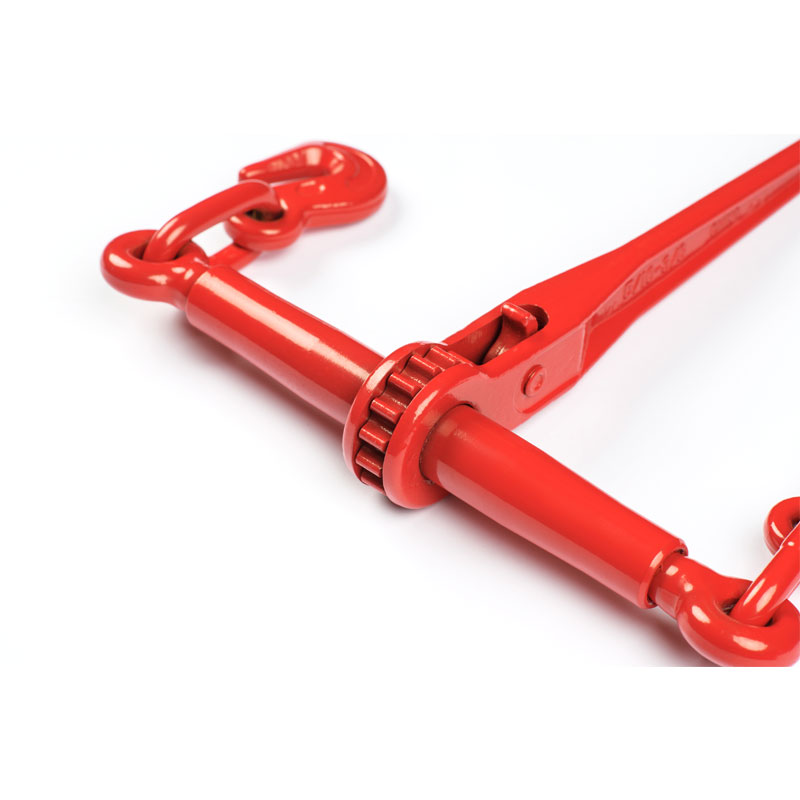

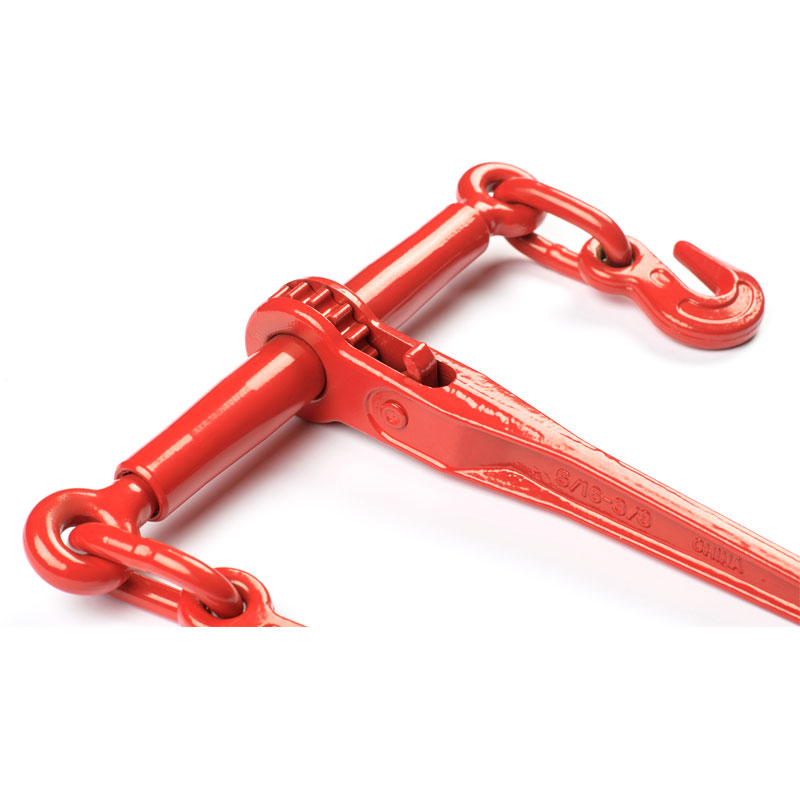

Hoʻopili Hoʻouka ʻAno Ratchet

Nā hiʻohiʻona o ka Ratchet Type Load Binder a.Safety, hoʻolālā hilinaʻi no ka hana maʻalahi.
b.ʻAʻohe koi no ka laka ʻana o ka lima ma mua o nā mea hoʻopili ukana ʻano lever.
c.High Quality drop forged construction, Wela mālama 'ia no ka ikaika hou.
d.Short reach hooks provide optimum take-up
e.E hoʻāʻo ʻia kēlā me kēia binder.

E hoʻouna i ka nīnau Hoʻoiho i ka PDF

Hōʻike huahana

Nā hiʻohiʻona hoʻopaʻa ukana ʻano Ratchet

a. Palekanay, hoʻolālā hilinaʻin no ka hana maʻalahi.
b.ʻAʻohe koi no ka laka ʻana o ka lima ma mua o nā mea hoʻopili ukana ʻano lever.
c.High Quality drop forged construction, Wela mālama 'ia no ka ikaika hou.
d.Short reach hooks provide optimum take-up
e.E hoʻāʻo ʻia kēlā me kēia binder.

Min-Max Laina kaulahao (i)	Haawe hana kaupalena(lbs)	Hoʻouka hōʻoia (paona)	ʻO ka liʻiliʻi loa ukana(lbs)	Kaumaha/Kekahi (paona)	Ka lōʻihi lima (i)	Ana (ma)
Min-Max Laina kaulahao (i)	Haawe hana kaupalena(lbs)	Hoʻouka hōʻoia (paona)	ʻO ka liʻiliʻi loa ukana(lbs)	Kaumaha/Kekahi (paona)	Ka lōʻihi lima (i)	A	B	C	E	E1	F	F1	G
1/4-5/16	2200	4400	7800	3.52	7.16	7.16	89	1.77	16.22	21.26	17.79	22.83	0.35
5/16-3/8	5400	10800	19000	10.5	13.42	13.92	1.3	2.6	22.64	30.64	25.24	33.24	0.51
3/8-1/2	9200	18400	33000	12.2	13.92	13.92	1.3	2.6	24.13	32.13	27.04	35.14	0.59
1/2-5/8	13000	26000	46000	14.38	13.92	13.92	1.3	2.6	26.45	34.45	30.07	38.07	0.74

Hōʻailona Wela: ʻO ka Ratchet Type Load Binder Hoʻopaʻa ʻia , ʻO Australian Standard Ratchet Type Chain Load Binder , G80 Drop Forged Ratchet Type Load Binder , Mea Hoʻopili Hoʻouka ʻAno Ratchet me ka Hook , Huina ʻAno Ratchet Lever Load Binder ʻOihana Chain Tensioners
