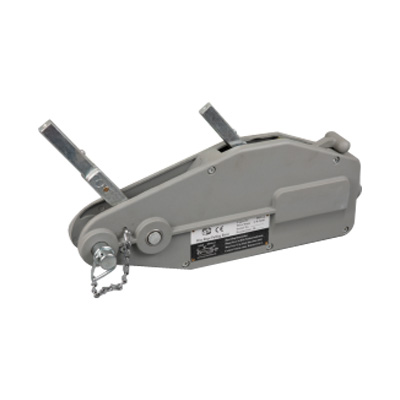

Hana ʻia ke kaula kaula huki i ke kila kila kila kiʻekiʻe, loaʻa i nā lou swivel nā paʻakikī kiʻekiʻe ma hope o ka mālama ʻana i ka wela. He ikaika a ʻaʻole maʻalahi hoʻi e decouple. Aia kahi lima i mua, kahi ʻau i hope a me kahi leve hana hiki ke hoʻohemo a hoʻolōʻihi ʻia e maʻalahi ai kēia hana.
Hiʻona oPahu kaula kaula uea
Hana ʻia i ke kila kila paʻa kiʻekiʻe, loaʻa i nā lou swivel kahi paʻakikī kiʻekiʻe ma hope o ka mālama ʻana i ka wela. He ikaika a ʻaʻole maʻalahi hoʻi e decouple. Aia kahi lima i mua, kahi ʻau i hope a me kahi leve hana hiki ke hoʻohemo a hoʻolōʻihi ʻia e maʻalahi ai kēia hana.
Hoakaka oPahu kaula kaula uea
| 'Ikamu helu | 0.8T | 1.6T | 3.2T | 5.4T | |
| Loipālākiō nona iho (kg) | 800 | 1600 | 3200 | 5400 | |
| Loipālākiō ka lima lima i mua (N) | 343 | 400 | 441 | 745 | |
| Loipālākiō hele mua (mm) | > = 52 | > = 55 | > = 28 | > = 30 | |
| Kaula anawaena (mm) | 8.3 | 11 | 16 | 20 | |
| Ka hiki ke palekana i nā kaula lawe kaula kaula | 5 | 5 | 5 | 5 | |
| ʻO ka palekana palekana kū paʻa | 5 | 5 | 5 | 5 | |
| Max. ʻO ka ukana huakaʻi (kg) | 1200 | 2400 | 4800 | 8900 | |
| Max. Ka nui o ka nui (mm) | A | 44 | 56 | 70 | 90 |
| B | 60 | 68 | 90 | 160 | |
| C | 101 | 120 | 150 | 200 | |
| D | 420 | 545 | 645 | 935 | |
| E | 430 | 556 | 666 | 940 | |
| F | 172 | 200 | 227 | 300 | |
| G | 240 | 270 | 320 | 410 | |
| L1 (knm) | 80 | 80 | 80 | 80 | |
| L2 (knm) | / | 120 | 120 | 135 | |
